DBMS Architecture

These notes cover the internal architecture of a Database Management System (DBMS), focusing on: - How do we interact with a DBMS, - what components exist inside a DBMS to process queries and manage data.

Overview

Two fundamental questions guide DBMS architecture:

  • What is the interface to the DBMS?
  • What components exist inside a DBMS?

A DBMS acts as an intermediary between users/applications and stored data, providing abstraction, optimisation, and safe access.

DBMS Interfaces

DBMSs provide different interfaces depending on the task being performed.

DDL vs DML

Definition — DDL vs DML

DDL (Data Definition Language)
Used to define and modify the database schema. - Creating tables - Creating indexes - Altering schemas

DML (Data Manipulation Language)
Used to query and modify data stored in tables. - Querying data - Inserting, updating, deleting records

High-Level DBMS Interfaces

A DBMS supports multiple types of users and interaction modes:

  • Database Administrators Some DDL statements and potentially some privileged commands.
  • Casual Users Interactively query using a command line.
  • Application Programmers People who build database applications, these applications will require an interface for the database as well.

Core DBMS Components

At a high level, a DBMS consists of a frontend and a backend. - The frontend is user facing and is all about executing queries. - The backend is about actually executing the queries and also managing the data that exists behind the scenes.

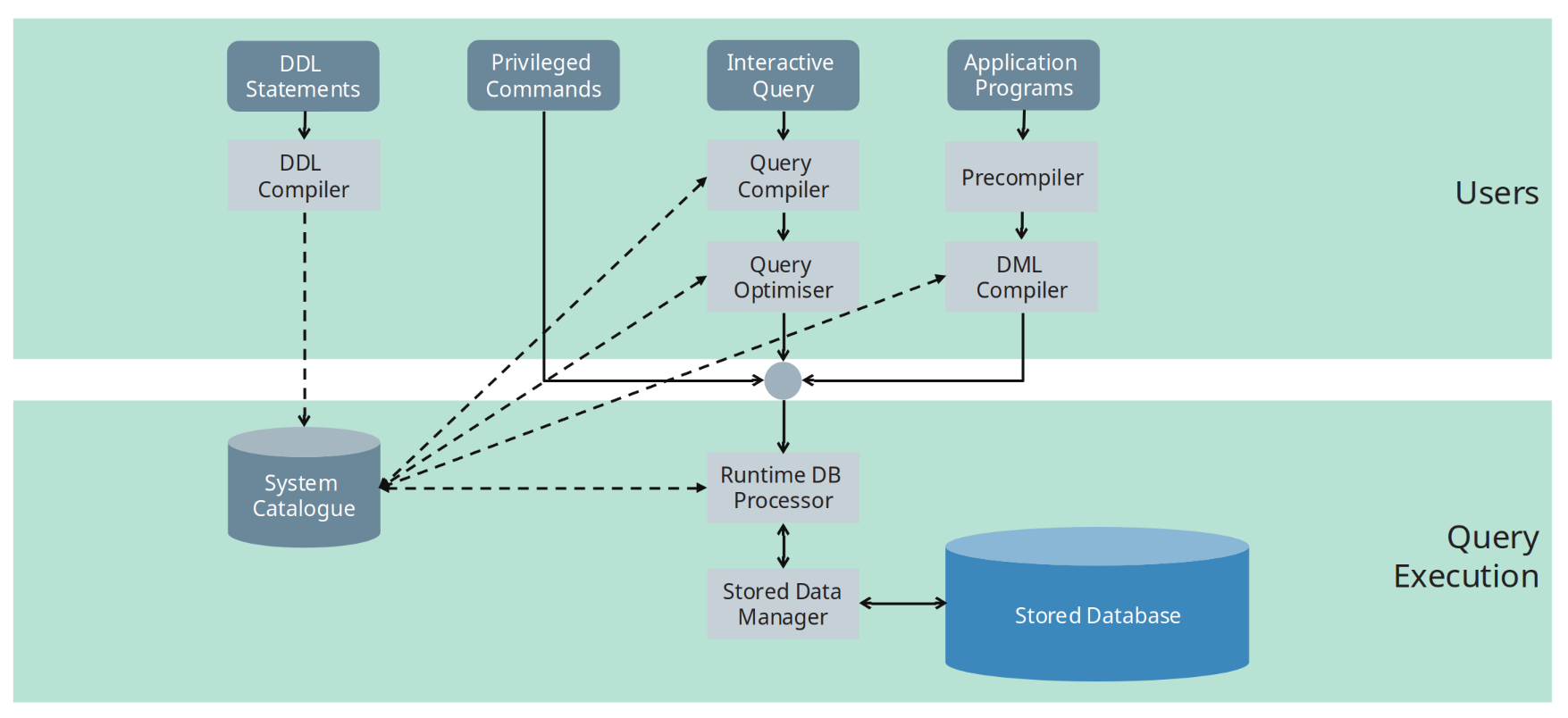

DBMS Diagram

The following sections describe each component.

System Catalogue

Definition — System Catalogue

The system catalogue (also called the data dictionary) stores metadata about the stored data and the database schema

It contains information such as:

  • Names and sizes of files
  • Storage details of files
  • Names and data types of data items
  • Mappings between schemas
  • Constraints (e.g Foreign keys)
  • Statistical information (e.g Number of distinct value on that field)
    • Used in query optimiser
    • It tells us how expensive certain operations are going to be.

The system catalogue is consulted heavily during query compilation and optimisation. Any query (DDL or DML) talks to the system catalogue. e.g. if a table exists, update queries will update system catalogue etc.

DDL Compiler

Role — DDL Compiler

The DDL compiler processes schema definitions and updates the system catalogue.

Responsibilities:

  • Parses DDL statements
  • Validates schema definitions
  • Stores schema descriptions in the system catalogue

Query Compiler

Role — Query Compiler

The query compiler parses and validates queries, then converts them into an internal representation (query plans).

Responsibilities:

  • Syntax and semantic checking of queries
  • Compiling queries into an internal form (query plan)
  • Passing compiled queries to the query optimiser (Consults system catalogue, of the possible algorithms, select the best algorithm for this operation)

Query Optimiser

Role — Query Optimiser

The query optimiser improves query execution efficiency by transforming the query plan.

Key tasks:

  • Reordering and rearranging operations in the query plan
  • Eliminating redundant operations
  • Selecting appropriate algorithms
  • Choosing suitable indexes
  • Consulting the system catalogue for statistical information
  • Generating executable code for the runtime processor

Note

Query optimisation is critical for performance and is one of the most complex components of a DBMS.

Precompiler

Role — Precompiler

The precompiler processes application programs that contain embedded DML commands.

Responsibilities:

  • Extracts DML statements from application programs
  • Sends extracted DML to the DML compiler
  • Leaves host-language code unchanged

DML Compiler

Role — DML Compiler

The DML compiler compiles data manipulation commands into executable code.

Responsibilities:

  • Compiling DML statements
  • Producing code suitable for execution by the runtime database processor

Runtime Database Processor

Role — Runtime Database Processor

The runtime database processor executes database operations.

Responsibilities:

  • Executing privileged commands
  • Executing query plans produced by the query optimiser
  • Accessing the database through the stored data manager

Stored Data Manager

Role — Stored Data Manager

The stored data manager controls access to data stored on disk.

Responsibilities:

  • Managing access to disk using operating system services
  • Controlling the shared buffer pool
  • Handling data transfer between disk and main memory

Definition — Buffer Pool

The buffer pool is the portion of main memory used to cache database pages read from disk.

Stored Database

The stored database consists of:

  • Data files on disk
  • Indexes
  • Physical storage structures

All access to the stored database is mediated by the stored data manager.

Other DBMS Utilities

In addition to core components, DBMSs include utility modules:

  • Loading utility
    Loads files into the database

  • Backup utility
    Dumps the database to secondary storage (typically tape)

  • Recovery utility
    Handles failures using backup and recovery information

  • File reorganisation utility
    Reorganises files to improve performance

  • Performance monitoring
    Provides statistics to help the DBA decide when reorganisation is needed

Summary — Key Takeaways

  • DBMS architecture separates interfaces, query processing, and data storage
  • DDL defines structure; DML manipulates data
  • The system catalogue stores critical metadata
  • Query compilation and optimisation are distinct phases
  • Runtime execution is separated from storage management
  • Utilities support reliability, performance, and administration
