Data Storage

Overview

This lecture covers how databases store and manage data efficiently on secondary storage.

  • The memory hierarchy and trade-offs between speed, cost, and capacity.
  • Physical organisation of disks and blocks.
  • Buffer management and replacement strategies.
  • The Five-Minute Rule for memory vs disk trade-offs.
  • Representation of data items, records, and blocks.
  • Addressing, pointer swizzling, insertion, and deletion issues.

Storage Organisation

The Memory Hierarchy

Databases rely on multiple levels of storage:

  • Cache
  • Main Memory
  • Secondary Storage
  • Tertiary Storage

Each level differs in:

  • Volatility
  • Speed
  • Cost
  • Capacity

Cache

  • Volatile
  • Very fast
  • Very expensive
  • Limited capacity
  • Hierarchical (Registers → L1 → L2)

Typical values: - Registers: ~10¹ bytes, 1 cycle - L1: ~10⁴ bytes, <5 cycles - L2: ~10⁵ bytes, 5–10 cycles

Main Memory

  • Volatile
  • Fast
  • Medium capacity
  • Typical capacity: 10⁹–10¹⁰ bytes
  • Typical access time: ~10⁻⁸ s (20–30 cycles)

Secondary Storage

  • Non-volatile
  • Slow
  • Cheap
  • Large capacity
  • Typical capacity: 10¹¹–10¹² bytes
  • Typical access time: ~10⁻³ s (~10⁶ cycles)

Used for: - Persistent database storage - Hard Disk Drives (HDDs)

Tertiary Storage

  • Non-volatile
  • Very slow
  • Very cheap
  • Very large capacity
  • Typical capacity: 10¹³–10¹⁷ bytes
  • Typical access time: 10¹–10² seconds

Secondary Storage: Hard Disks

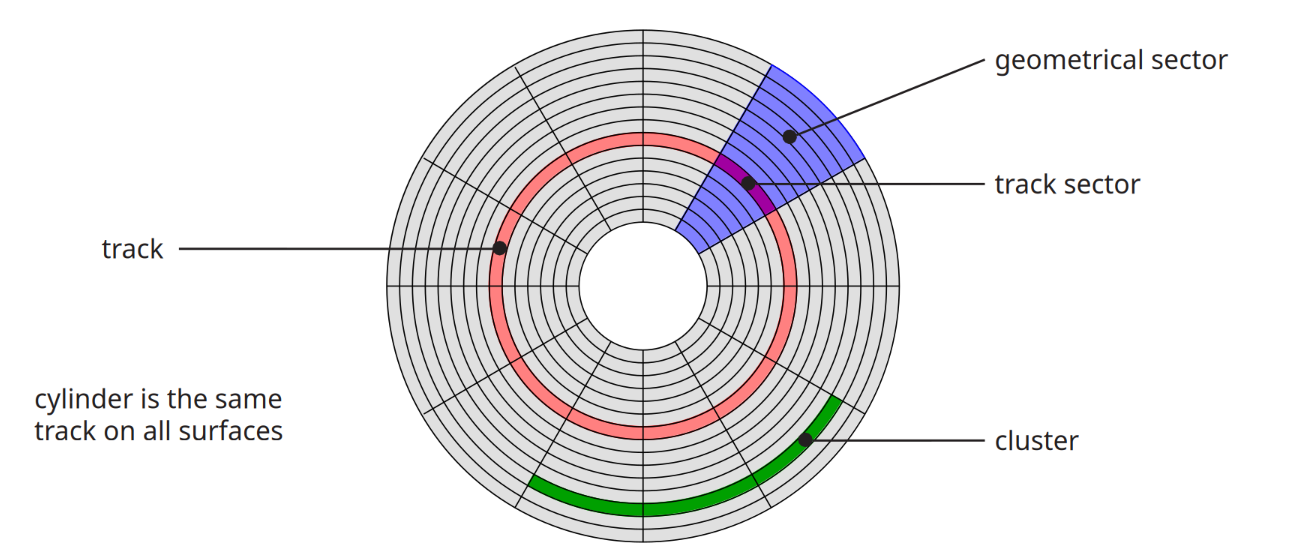

Disk Structure

Disk components:

  • Track - Concentric tracks
  • Sector - Track sector (a part of the sector which belongs to a single track) and geometrical sector (The whole wedge shaped sector)
  • Cluster
  • Cylinder (same track on all surfaces)

Disk Structure

Track Sector Size

Track sectors at the towards the axis of the disk (inner tracks) are much smaller than tracks closer to the circumference of the disk. Size of the track sectors closer to the axis are the limiting factor, the size of that track sector will determine how much data you can fit in a track sector which will then determine how much data you can fit in a block on disk.

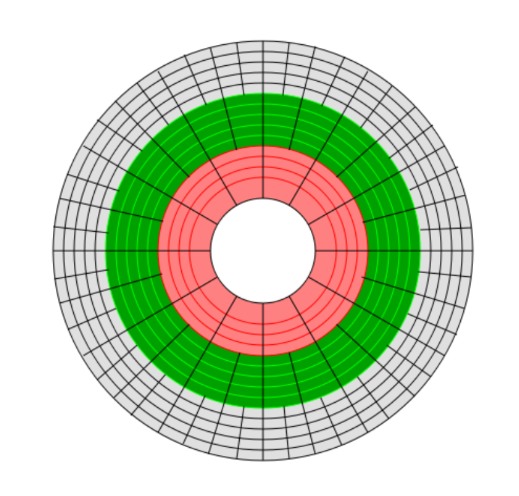

Zone Bit Recording (ZBR)

  • Outer tracks are longer than inner tracks.
  • Instead of constant bits per track:
  • Number of sectors per track varies.
  • Hybrid of:
  • Constant Linear Velocity (CLV)
  • Constant Angular Velocity (CAV)

Improves storage density.

ZBR

Difficulties

Zone Bit Recording makes a few things a little more difficult such as addressing.

Disk Sector Format

Each sector contains:

  • Gap – separator
  • Sync – start indicator
  • Address mark – sector ID
  • Data
  • ECC – error correcting code

Example (4k Advanced Format):

  • Gap + sync + mark = 15 bytes
  • Data = 4096 bytes
  • ECC = 100 bytes
  • ~2.7% overhead

Disk Access Time

Reading

Access Time = - Seek Time - + Rotational Delay - + Transfer Time

Seek Time

Time to move head to correct track.

  • ~4 ms (high-end)
  • ~15 ms (mobile drives)

Rotational Delay

Average delay = time for 0.5 revolution.

Transfer Time

Transfer time = block size / transfer rate

Transfer rates vary: - Up to 1000 Mbit/s - Blu-Ray ~432 Mbit/s - CD ~1.23 Mbit/s - SSD limited by interface (e.g., SATA 3000 Mbit/s)

Sequential Access

Sequential I/O avoids repeated seeks and rotational delays.

Access time ≈ - (block size / transfer rate) - + negligible overhead

Sequential I/O is much cheaper than random I/O.

Writing

Similar to reading unless verifying:

Access Time = - Seek - + ½ rotation - + Write transfer - + Full rotation - + Read transfer (verification)

Modifying a Block

Steps:

  1. Read block
  2. Modify in memory
  3. Write block
  4. Optionally verify

Total includes: - Seek - Rotational delays - Transfer times for read/write - Optional verify costs

Block Addressing

Physical Addressing

Cylinder–Head–Sector

Problem: - ZBR makes mapping complex.

Logical Block Addressing (LBA)

  • Blocks identified by integer index.
  • Firmware maps LBA → physical location.
  • Enables remapping of bad blocks.

Block Size Selection

Trade-offs:

Large Blocks

  • Fewer seeks
  • Lower access overhead
  • Better I/O efficiency

But: - More irrelevant data read if accessing a single record.

Solid State Drives (SSD)

Characteristics:

  • NAND flash-based
  • 4–5× more expensive than HDD
  • Smaller maximum capacity (~1–2TB typical)
  • Much higher I/O performance
  • Asymmetric read/write (writes slower)
  • Limited program-erase cycles (~100,000)
  • Wear levelling required

HDD vs SSD: IOPS

IOPS = 1 / (seek + latency + transfer)

SSD: - Much higher IOPS - No mechanical seek

Buffer Management

Buffer Pool

  • Secondary storage >> main memory
  • Buffer pool organised into frames
  • Each frame = 1 block + metadata

Buffer Metadata

Each frame has:

  • Pin count
  • Dirty flag
  • Access time (LRU)
  • Loading time (FIFO)
  • Clock flag (Clock algorithm)

Requesting a Block

  1. If block in buffer:
  2. Increment pin count.
  3. Else if empty frame:
  4. Read block.
  5. Else:
  6. Choose replacement frame.
  7. If dirty → write to disk.
  8. Load new block.
  9. Set pin count = 1.

Replacement Strategies

Frame must have pin count = 0.

LRU

Replace frame with oldest access time.

FIFO

Replace frame with oldest loading time.

Clock

Approximation of LRU.

Cycle through frames: - If not accessed in full cycle → replace.

Single vs Double Buffering

Single Buffering

Time = n(P + R)

  • P = process time
  • R = read time
  • n = blocks

Double Buffering

Overlap processing and reading.

If P > R:

Time = R + nP

More efficient than single buffering.

The Five-Minute Rule

Guideline:

Data referenced every five minutes should be memory resident.

Cost Model

If block accessed every X seconds:

Cost on disk: CD = $D / (X I)

Cost in memory: CM = $M / P

Break-even when:

X = ($D P) / (I $M)

Historical Examples

1997 (HDD)

X ≈ 266 seconds (~5 minutes)

2007 (HDD)

X ≈ 5248 seconds (~1.5 hours)

2007 (SSD)

X ≈ 876 seconds (~15 minutes)

2016 (SSD)

X ≈ 805 seconds (~13.5 minutes)

Modern Hierarchy Observations

  • SSD viable between DRAM and HDD.
  • DRAM–SSD break-even ≈ 5 minutes.
  • SSD–HDD ≈ 1.5 days.
  • DRAM energy cost > SSD.
  • Likely transition to NVDIMM.

Disk Organisation

Data Items

Stored as bytes (8 bits).

Numbers

  • Integer (2 bytes example)
  • IEEE 754 floating point:
  • 1 sign bit
  • Mantissa
  • Exponent

Characters

Encodings: - ASCII - UTF-8

Booleans

  • 1 byte per value
  • Can pack bits if necessary.

Dates

  • Days since origin (e.g., 1 Jan 1900, 1 Jan 1970)
  • ISO8601
  • Calendar: YYYYMMDD
  • Ordinal: YYYYDDD

Times

  • Seconds since midnight
  • ISO8601:
  • HHMMSS
  • HHMMSSFF

Strings

  • Null-terminated
  • Length-prefixed
  • Fixed length

Fixed vs Variable Length

  • Fixed: integers, chars
  • Variable: strings, bit arrays
  • May include type info.

Records

Definition

Collection of related fields.

Example: - Employee: - Name - Salary - Start date

Fixed Format Records

Schema defines: - Fields - Types - Order - Meaning

Efficient and compact.

Variable Format Records

Self-describing.

Useful for: - Sparse records - Repeating fields - Evolving formats

More space overhead.

Record Headers

May include:

  • Record type
  • Length
  • Timestamp

Blocks

Block Header May Contain

  • File ID
  • Block ID
  • Record directory
  • Free space pointer
  • Block type
  • Pointer to similar blocks
  • Timestamp

Separating Records

Options:

  • Fixed length
  • Special marker
  • Lengths in header

Spanned vs Unspanned

Unspanned: - Record fits in one block.

Spanned: - Record split across blocks.

Unspanned simpler but may waste space.

Sequencing

Ordering records by key:

  • Enables efficient sequential access.
  • Useful for merge-join.

Options: - Physically contiguous - Linked records - Overflow area

Indirection

Physical Addressing

Record ID = Device + Cylinder + Head + Sector + Offset

Rigid and inflexible.

Indirect Addressing

Record ID = Arbitrary bit string.

Mapped to physical address via table.

Allows record movement without changing ID.

Address Management

Each block/record has:

  • Database address
  • Memory address (when buffered)

Translation table maps DB → memory.

Pointer Swizzling

Convert DB address → memory pointer.

Swizzled pointer contains: - Bit indicating type - Memory or DB address

Strategies:

  • Automatic
  • On-demand
  • No swizzling

Unswizzling

Reverse process before unpinning.

Necessary because: - Blocks may be pinned by swizzled pointers. - Must restore DB addresses before eviction.

Insertion

Easy Case

  • Append to end
  • Use deleted slot

Hard Case (Sequenced)

  • Insert near correct position
  • Use overflow area

Consider: - How much free space? - When to reorganise?

Deletion

Options:

  • Immediate reclaim
  • Mark as deleted

Issues: - Free space chains - Wasted space - Dangling pointers

Tombstones

Leave marker in:

  • Map
  • Old location

Logical IDs may: - Never reuse ID - Keep mapping entry

Summary

  • Storage hierarchy defines performance trade-offs.
  • Disk access dominated by seek + latency.
  • Sequential I/O much cheaper than random.
  • Buffer management critical for performance.
  • Five-Minute Rule gives economic guidance.
  • Records, blocks, addressing and swizzling enable flexible storage.
  • Insertion/deletion introduce space and consistency challenges.
